  1. Documentation

Grid View

PreviousLinking Services,Ingress and PVCNextSide Editor

Last updated 1 year ago

To access the grid view, click on the "Grid" tab on the cluster bar once you are on the cluster detail page.

The grid view has a left-hand panel containing all available Kubernetes object types grouped by functionality, including CRDs.

To display a specific type of object on the grid, simply select the object type you want to see from the left-hand panel.

Once the data is displayed on the grid, users can sort by multiple columns, and create queries filtered by column, and columns are also movable and resizable.

To search across all columns, the grid view provides a search bar on the grid header.

To add a new object of the selected type, simply click on the "Add" button on the header bar.

To update or delete an object, select the row containing the object and use the side editor to make any modifications.

📋
🛗Side Editor

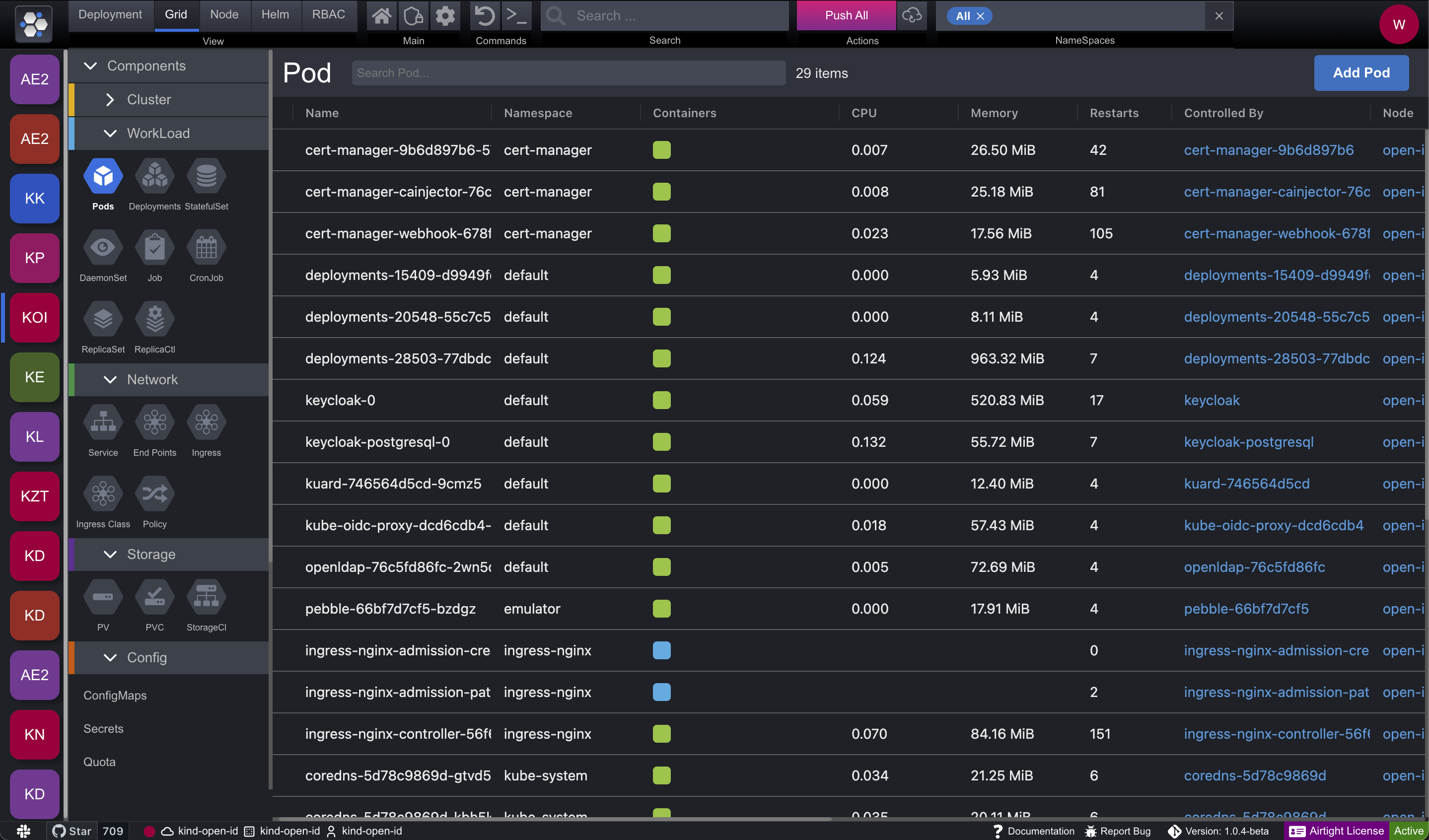

Grid View

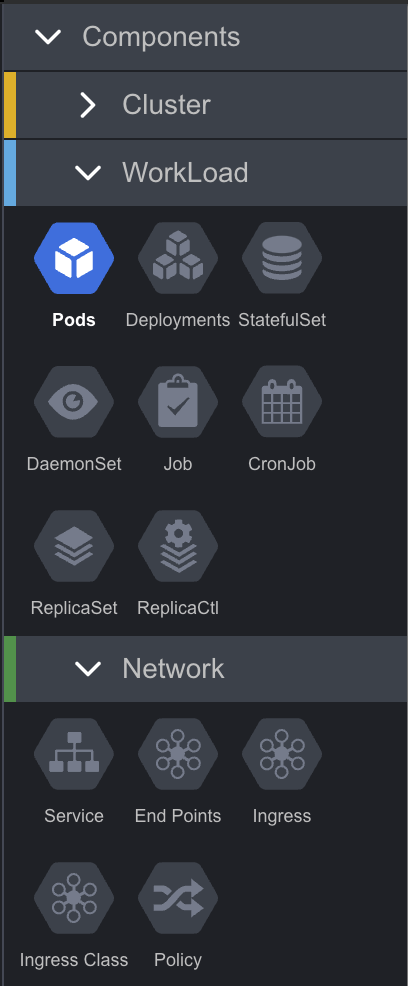

SideBar Catalog

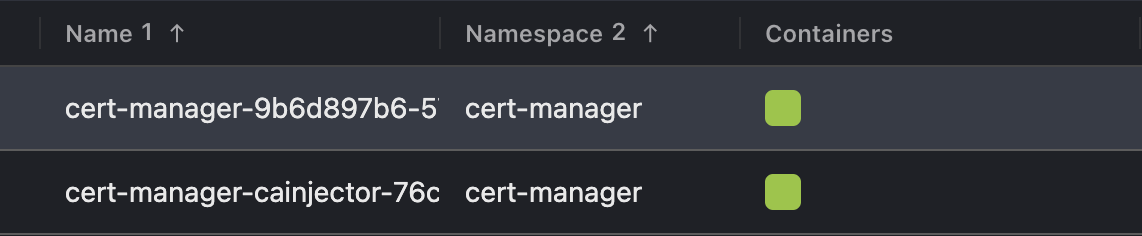

Multi sort

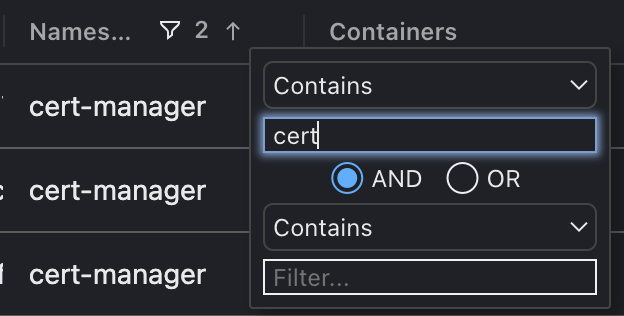

Column Filter
Grid header bar
