# Metrics

The Metrics tab is only available if Prometheus is installed and properly configured in the cluster settings. Refer to the cluster settings to see how this configuration is set.

{% content-ref url="/spaces/MXXfpTvt6Xe4Y0tCwViA/pages/hoUQjKk3OgX8WJ2r2iu0" %}
[Cluster Setting](/documentation/cluster-manager/cluster-setting.md)
{% endcontent-ref %}

Once is set up the metric tab is only available for two types of objects Workloads and Nodes.

For WorkLoad the following graphics and metrics are available:

* **Memory Usage:**

<figure><img src="/files/GEBwCkbsNrFOxkWf4ATV" alt="" width="400"><figcaption></figcaption></figure>

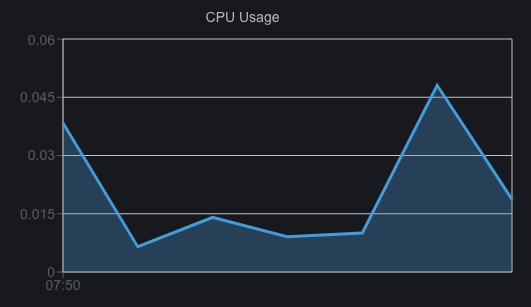

* **CPU:**

<figure><img src="/files/pXMeGFoLPuQvZjF1a0rY" alt="" width="398"><figcaption></figcaption></figure>

* **Network:**

<figure><img src="/files/iPM1ZywuRf7r12XUrdtJ" alt="" width="385"><figcaption></figcaption></figure>

* **Disk I/0:**

<figure><img src="/files/ePzNQBx4zyUhHhsYPb5f" alt=""><figcaption></figcaption></figure>

For Nodes, these are the following graphs and metrics:

The Memory graph shows the Allocable and capacity memory of the node, as well as the workload usage and total usage of memory

<figure><img src="/files/7dwD99fTtiP5YeK4eYIv" alt=""><figcaption></figcaption></figure>

The CPU graph shows the Allocable,capacity  and total usage of CPU for a node.


---
